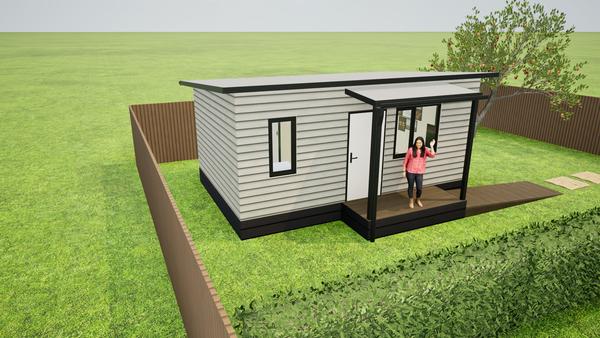

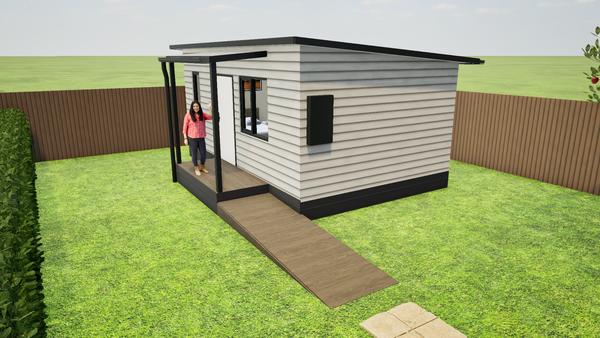

Alpha 26.1

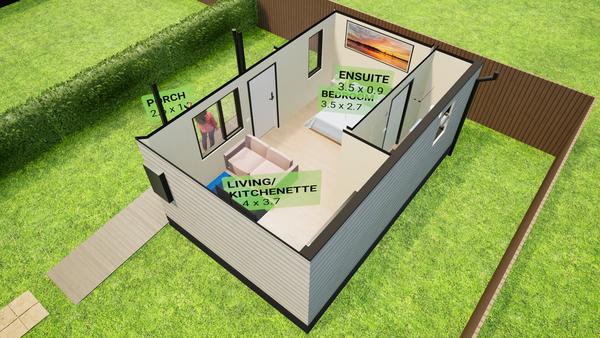

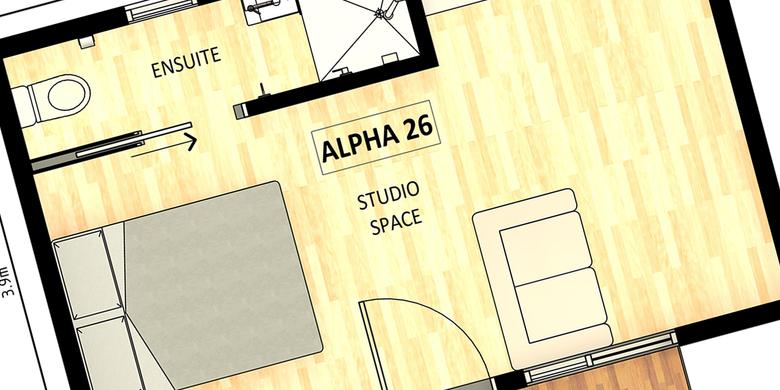

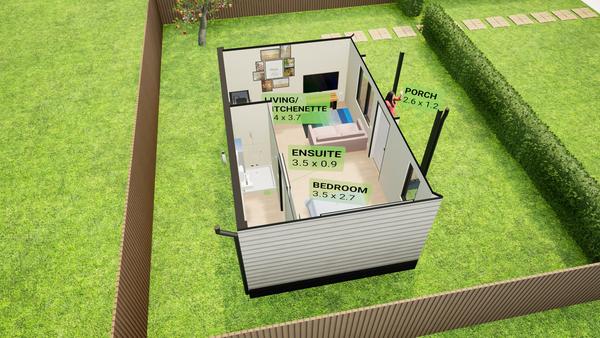

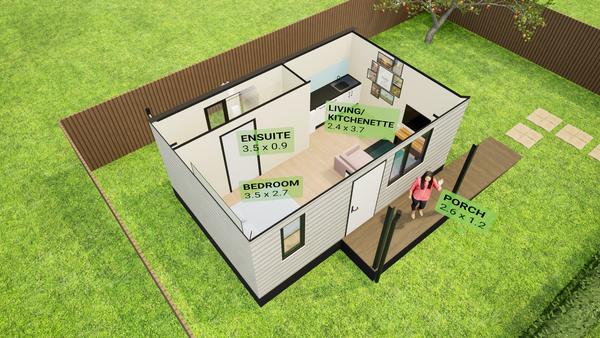

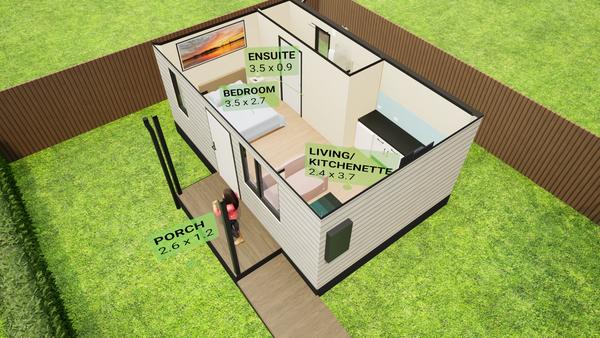

Open-plan studio, featuring a spacious ensuite, and kitchenette
Designed with comfort, space, and functionality in mind. At just 26sqm it is perfect to accommodate 1-2 people.
Ideal as an additional room, temporary housing/holiday accommodation, or home office, you will not be disappointed with the flexibility you gain from this powerhouse design.

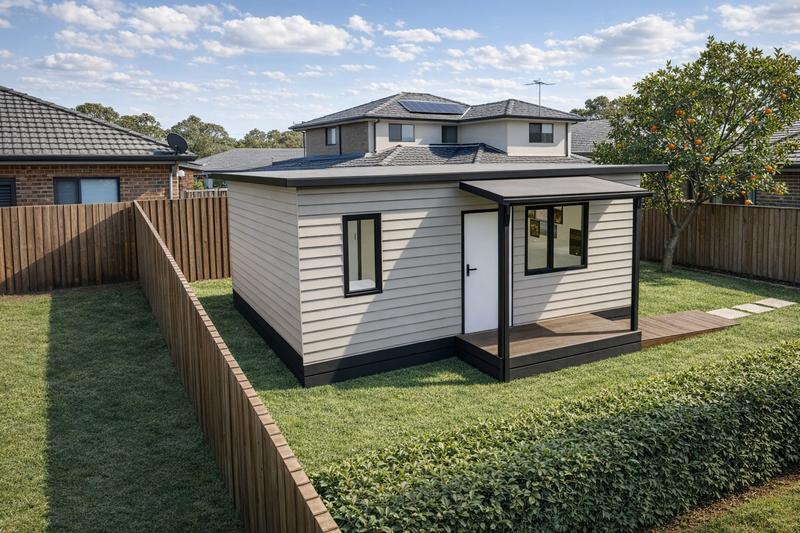

Boxed Buildings Alpha 26.1

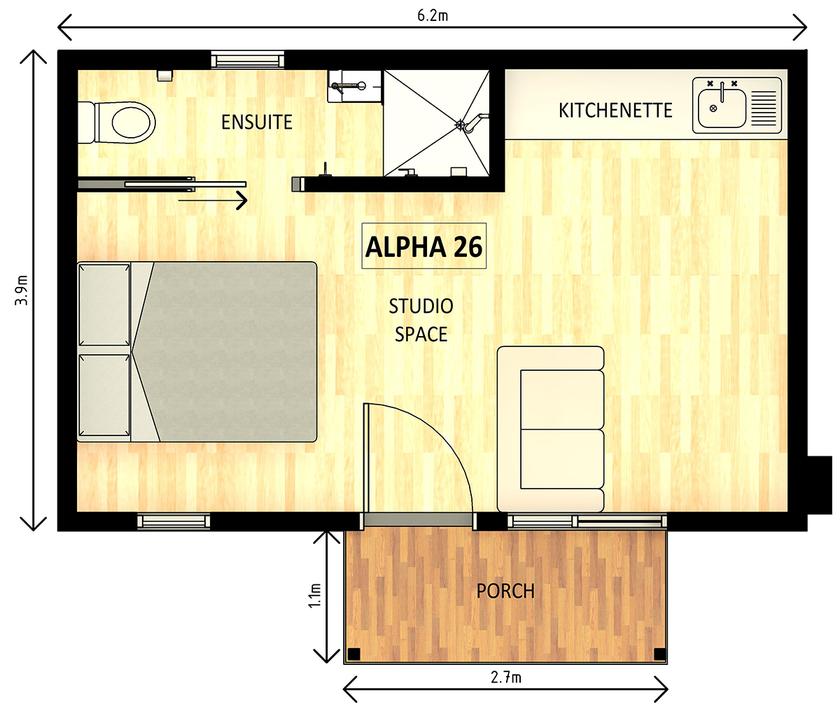

At just 6.2 x 3.9m, Alpha 26.1 fits comfortably behind many existing homes, including on lots as narrow as 9m wide.
The design is fully customisable and arrives ready to assemble. At $75,000 delivered, it is one of the most practical ways to add a genuinely liveable space to your existing property.
Alpha 26.1 is classified as a Small Secondary Dwelling, therefore generally only requires a building permit to commence construction.
SIP construction
Boxed Buildings are built from Structural Insulated Panels (SIPs). The panels arrive ready to assemble, with insulation already built in, which means the building goes up in roughly half the time of a conventional build.
The walls are also airtight in a way that standard timber framing rarely achieves, so the finished space stays warm in winter and cool in summer whilst significantly reducing the need to operate power hungry heating and cooling systems.
Interior colour schemes
Choose your colour scheme, or bring your own.
RD Building Design has teamed up with interior designer Sharon Lynch to develop a range of interior styling options.
- Bronze coastal
- Bronze contemporary
- Bronze modern 1
- Bronze modern 2
Ready to see what Alpha 26.1 could do for your block?
Most homeowners are sitting on more potential than they realise, and Alpha 26.1 is one of the easiest ways to act on it.
Get in touch and we will walk you through what fits on your property, what the permit requirements look like, and what the whole process involves from feasibility and design to finished build.
Alpha 26.1
Inclusions (VIC)
- Footings
Hot-dip galv footings and supports. Supplied by Surefoot. Designed and manufactured in Melbourne, VIC
- Subfloor Supports (Bearers)
MGP10 90 x 45.
Australian sourced H3 treated pine- Floor
165mm SIPs panels
- Walls
115mm SIPs panels
- Structural Framing (Plates/Jambs/Lintels)
MGP10 90 x 45.
Australian sourced H2 treated pine- Roof
SIPs panels
- Fascias/Barges
Colorbond steel.
- Windows
Double-glazed as a minimum
- Door - External
Hume Duracoat 920 x 2040
- Doors - Internal
Hume Flush 920 x 2040
- Gutters/Gutter Clips
Icon PVC. Designed and manufactured in Australia
- Downpipes
Holman 100mm PVC. Designed and manufactured in Australia
- Weatherboard Cladding
Duraplank 230mm wide fibrecement boards. Designed and manufactured in Australia
- Plinthboards
Rough sawn 150 x 25mm. Australian sourced H3 treated pine
- Internal Flooring
Gerfloor Senso vinyl sheeting
- Wet Area Lining
Villaboard 6mm
- Waterproofing
Bayset WPM system
- Shower/Shower Screen
Estilo brand basin, screen, acrylic waterproof wall lining
- Toilet
Estilo close-coupled rimless S-trap
- Vanity
Estilo 400mm vanity with cupboard
- Mirror Cabinet
Estilo 570mm wide cabinet with adjustable shelf
- Hot Water
Rinnai Hotflo 50L electric hot water heater
- Kitchen Joinery
Kaboodle Classic or Everyday
- Kitchen Sink
Estilo single bowl with drainer
- Kitchen Splashback
Bellessi 575mm x 4mm polymer splashback
- Electrical
Switchboard, Clipsal 8 x double power outlets, 4 x double LED batten lights, 4 x Clipsal lightswitches
- Painting - External
Taubmans Sunproof low sheen
- Painting - External (Door)
Taubmans Sunproof gloss
- Painting - Internal (Bathroom)
Taubmans Easycoat semi gloss
- Painting - Internal
Dulux 'Light Texture'
- Ramp/Deck
MGP10. Australian sourced H3 treated pine
- Miscellaneous
All required glues, screws, sealants, wiring, plumbing pipes supplied
Alpha 26.1
Construction
- Delivered
From just $75,000 inc GST
- Assembly
-
Estimated $50,000
Plumbing
- Trenches for connection to existing sewer and stormwater
- Laying of sewer and stormwater services
- Rough-in and fit-off of external and internal plumbing services
- Compliance certificates
Electrical
- Connection of electrical services
- Rough-in and fit-off of external and internal electrical services
- Compliance certificates
Waterproofing
- Water-proofing to internal wet areas to as3740:2021
- Compliance certificates
Builder
- Installation of sure-foot footings
- Assembly of sips panels and roof
- Installation of windows, doors, joinery
- Installation of vapour barrier, cladding
- Assembly of deck and ramp
Miscellaneous (by builder or others)
- Laying of floor vinyl
- Painting
- Landscaping etc
Boxed Buildings. Benefits compared to traditional builds
A conventional backyard build means weeks of site work, weather delays, and trades coming and going for months. A Boxed Building sidesteps most of that. The kit is manufactured off-site, so assembly is fast. Build time runs at roughly half that of a comparable conventional structure, with less site disruption and far less waste.
Is a major site cut/excavation required?
Is a major site cut/excavation required?
NoIf utilising Surefoot footings
Is a major site cut/excavation required?
YesFor concrete slabs
Stump hole excavation required?
Stump hole excavation required?
NoIf utilising Surefoot footings
Stump hole excavation required?
YesFor concrete slabs and pad footings
Choice of footing? (Stumps or concrete slab)
Choice of footing? (Stumps or concrete slab)
YesOur designs are flexible. (Costs for concrete slabs are applicable)
Choice of footing? (Stumps or concrete slab)
SometimesMany volume builders only build with concrete slabs
How many deliveries are made to the site?
How many deliveries are made to the site?
OneEverything required for assembly is delivered once (larger projects may require additional deliveries)
How many deliveries are made to the site?
ManyMultiple deliveries are made throughout the build process causing delays
Can I owner build?
Can I owner build?
YesOur projects are designed for simple assembly with all above ground parts supplied
Can I owner build?
YesTraditional builds can be more difficult to coordinate
Do I need to straighten walls after installation?
Do I need to straighten walls after installation?
NoWalls and roof are precision engineered and do not need straightening
Do I need to straighten walls after installation?
YesFrame built systems need to be straightened before plastering
Do I need internal plasterboard in dry areas?
Do I need internal plasterboard in dry areas?
NoThe walls and roof do not need plasterboard. They can be left raw
Do I need internal plasterboard in dry areas?
YesFrame built systems all need plastering and painting which increases costs
Is a building permit required?
Is a building permit required?
YesA building permit is required for all permanent structures
Is a building permit required?
YesA building permit is required for all permanent structures
